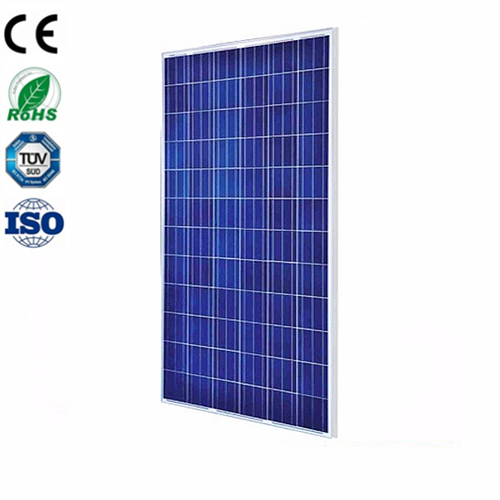

Product name : Poly solar panel / module 280w
Product No. : 20162519054
Price : Get the latest
←[Previous Product]              [Next Product]→
Online Inquiry         Email Us

  Details:



BENEFITS

  • 25 Years linear performance warranty.
  • 12 years warranty on power output not fall below 90%
  • 10 Years warranty on material and workmanship
  • 24 hour-response service
  • Enhanced design for easy installation and long-term reliability





FEATURES

  • Cost-effective standard solar modules for skylight, roofing and facades applications
  • 0 to +3% positive tolerance for mainstream products
  • Withstand high wind loads and snow loads (5400Pa)
  • Anti-reflective highly transparent, low iron tempered glass
  • Whole black and frame features aesthetic appearance



TYPICAL ELECTRICAL CHARACTERISTICS

Characteristics Unit EP-P280W
Maximum Power (Pmax) W 280
Power Tolerance W (0,+5)
Maximum Power Voltage (Vmp) V 36.05
Maximum Power Current (Imp) A 8.01
Open Circuit Voltage (Voc) V 44.70
Short Circuit Current (Isc) A 8.54
Module Efficiency (ηm) % 14.94
Dimension of module mm 1956*992*40mm(77.0*39.1*1.6inch)
Pmax Temperature Coefficient %/C -0.42
Voc Temperature Coefficient %/C -0.3
Isc Temperature Coefficient %/C 0.05
Maximum System Voltage VDC 1000(TUV);600(UL)
Maximum Series Fuse Rating A 15
Operating Temperature C -40~ +85
NOCT C 45±2
STC:1000W/m2.AM1.5 and 25C cell temperature, NOCT : Nominal Operating Cell Temperature
