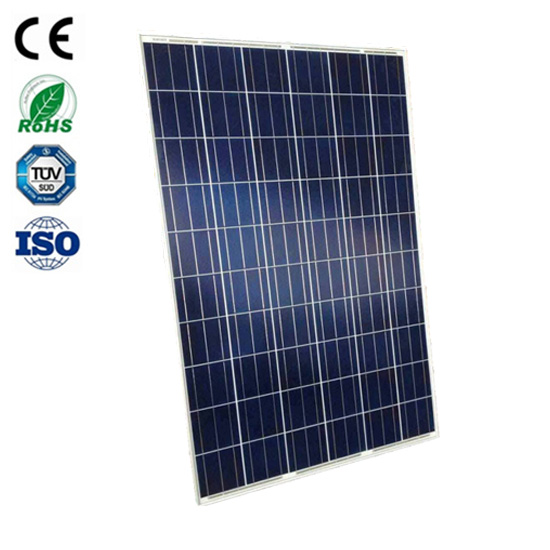

Product name : Poly solar panel / module 260w
Product No. : 201625181730
Price : Get the latest
←[Previous Product]              [Next Product]→
Online Inquiry         Email Us

  Details:



Product Description



Cell Type



Poly Crystalline 156×156mm(6 inch)



No. of Cells



60(6×10)



Dimension



1650×992x40mm



Weight



19.5kg




Component Element



Front Glass



3.2mm, High Transmission, Low Iron,  Tempered Glass



Frame



Anodized Aluminum Alloy Type 6063-T5



Junction Box



IP 65 Rated (Black)



Output Cables



TUV 1×4mm2, length:900mm



Connector



MC4(UV resistance and self-locking/IP67)



Encapsulation Material



EVA(0.50±0.03mm thickness)



Back Foil



White TPT(0.32±0.03mm thickness)



Fixing Adhesive



Silicone Sealant(White)




Specifications



Module Type



EP-P260W



Maximum Power at STC (Pmax)



260Wp



Maximum Power Voltage (Vmp)



30.63V



Maximum Power Current (Imp)



8.49A



Open-circuit Voltage (Voc)



37.98V



Short-circuit Current (Isc)



9.04A



Module Efficiency (%)



 15.9%



Operating Temperature( °C )



-40°C ~+90°C



Maximum System Voltage(V)



DC 1000V(TUV) / DC600V(UL)



Maximum Rated Current Series(A)



15A



Power Tolerance



0~+3%



Temperature Coefficients of Pmax



(-0.45±0.05)%/°C



Temperature Coefficients of Voc



(0.05±0.01) %/°C



Temperature Coefficients of Isc



(-0.35±0.02)%/°C



NOTC(°C )



(47±2)°C

STC: Irradiance 1000W/M2   Module Temperature: 25°C AM=1.5






Warranty





Warranty



12-year warranty on product material and processing technology



Industry power output warranty: 90% in 10 years, 80% in 25 years









Packing Configuration



Q’ty/Pallet,



1×20’ft



1×40’GP



1×40’HQ



Pallet Q’ty



12pallets



28pallets



28pallets



Q’ty/Container



312pcs



728pcs



784pcs
