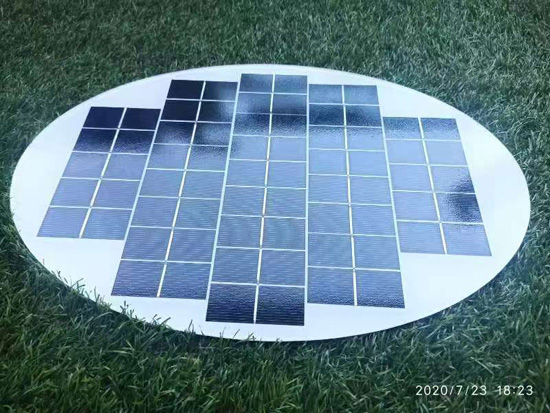

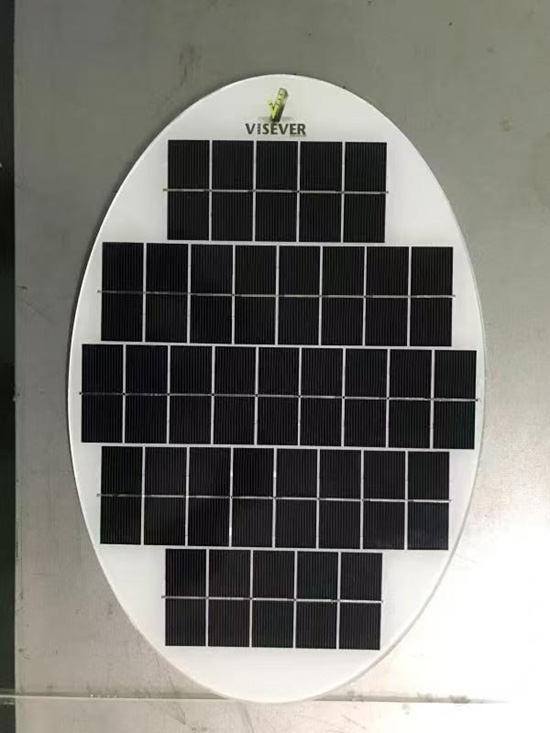

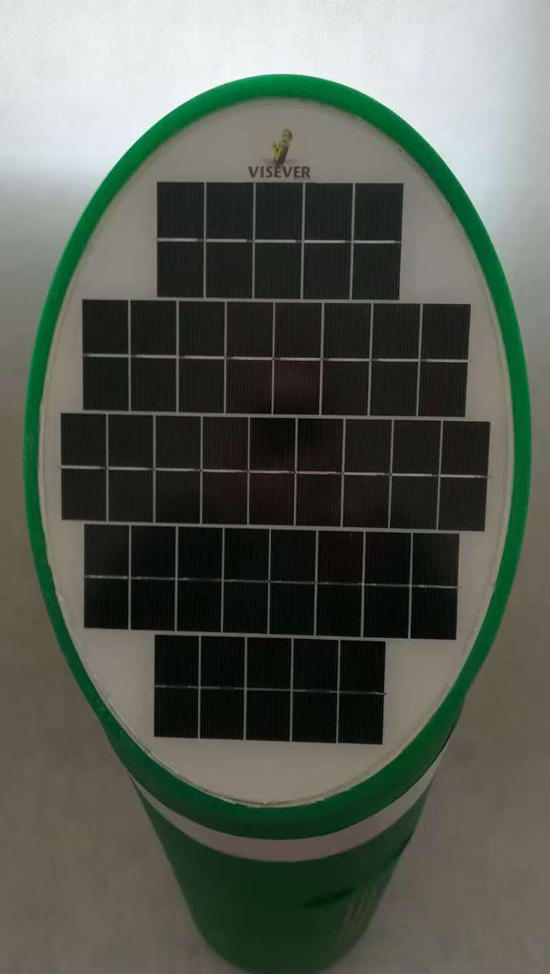

Product name : Customized Oval Glass Solar Panel
Product No. : 202548175019
Price : Find us with details
←[Previous Product]              [Next Product]→
Online Inquiry         Email Us

  Details:


Brief Introduction

Accepting customized designs and productions on different types and models of solar panels,including regular/irregular,glass,epoxy,PET,ETFE flexible solar panel,foldable solar panal,etc

With our bountiful resources and experience for years,we are capable to help our business partners to achieve goals with tailored solution!

Applications:  Solar lanterns, wireless sensors, IoT devices, crafts, toys, LED lights,street lights and other electronic devices etc.



Technical Details

Item No:                                         EP-400*265mm Oval Mono Solar Panel
Dimension:                                    400*265mm
Peak Power (Pmax):                       10W
Voltage at Pmax (Vmp):                 17.5V
Current at Pmax (Imp):                  0.57A
Open Circuit Voltage (Voc):           21V
Short Circuit Current (Isc):             0.6A
Cell Type:                                       High Efficiency Mono Solar Cell
Power Tolerance:                           ±5%
Encapsulation method:                 Glass
Back sheet:                                    PET
Product Warranty:                         2 Years
Storage temperature:                   -20°C ~ 45°C
Working temperature:                  -40°C ~ 65°C
Standard Test Conditions (STC):   1000W/m2, 1.5AM, 25°C Temperature


Sales Term: EXW,FOB(Shenzhen) or CIF
MOQ: 1pcs(For Sample Order)
Standard Leadtime: 10-15 working days
OEM / ODM/ OBM: Available
Cable Length: Customized
Connector Type: Customized

Packing & Delivery

Packing: Carton box with EPE foam(Wooden case for big quantity)
Delivery: By sea or by air, depends on quantity
