Shenzhen Endless Power CO., LTD

Product name : 140W Folding Solar Panel
Product No. : EP-F140W
←[Previous Product]              [Next Product]→
Online Inquiry         Email Us

  Details:

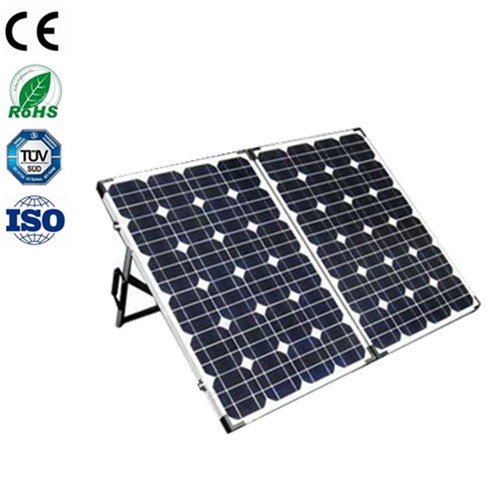

 140W Folding solar panel

Features:

1. Combined by 2pcs individual high-efficient mono-crystalline silicon solar panels;

2. The panels are in folding mode to save up holding space;

3. All panels are already installed together to save up your time;

4. All panels are connected together with charging cable, controller & 5m extension cable with battery clips;

5. Supporting Leg & a hand bag are also available for easy location & portable consideration;

Model number

EP-F120W

Characteristics



Dimensions

670*660*60mm

Weight

15kgs/set

Material

Mono-crystalline silicon

Number of cells

72pcs

STC: Irradiance of 1000W /m2, Air Mass of 1.5, Cell Temperature of 25°C

Electric performance

Maximum power voltage

18.30 V

Maximum power current

7.65A

Open circuit voltage

21.60V

Short circuit current

8.72A

Peak power

140 W

Power tolerance

0~+3%

Maximum system Voltage (V)

1000 V



Working Conditions & Parameters

NOCT cell

48±2 °C

Current temperature coefficient

0.037 %/ °C

Voltage temperature coefficient

-0.34 %/ °C

Power temperature coefficient

-0.48 %/ °C

Temperature coefficient Im (%)

+0.04%/ °C

Temperature coefficient Vm (%)

-0.32±0.02%/ °C

Operating temperatures

-40°C to +85°C

Surface pressure

60m/s (200kg /m2)



Warranty:

1.       10 years Materials and workmanship defect,

2.       15years 90% of its nominal power rating,

3.       25 years 80% of its nominal power rating
