Specification

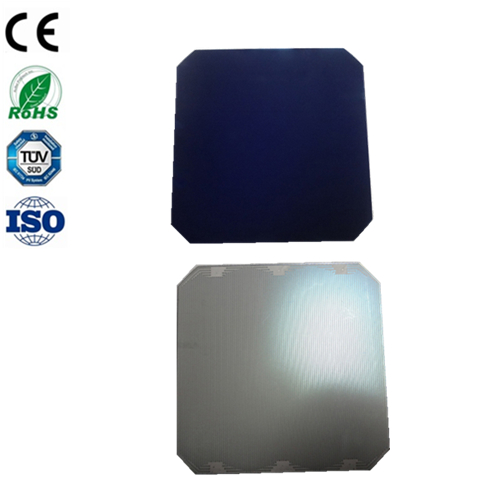

Sun powersolar cell is the most efficient monocrystalline cells currently in the world.
1.Highest Efficiency and Reliable: Unique back contacts producing technology —The positive and negative are designed on the back side of solar cell,providing high efficiency, even if the fragment, the rest part can still output power.
2.30 Degree Flexible:Can be bended 30 degrees, it is not easy to be broken.
3.Best Choice for Your High Requirement:Suitable for some high-tech products which need high efficiency solar cell in limited space.
Physical Characteristics
Construction: All back contact
Dimensions: 125mm x 125mm (nominal)
Thickness: 165μm ± 40μm
Diameter: 160mm (nominal)
Electric performance parameters
Pmpp (Wp) |
Eff. (%) |
Vmpp (V) |
Impp (A) |
Voc (V) |
Isc (A) |
3.24 |
21.8 |
0.574 |
5.65 |
0.682 |
6.04 |
3.28 |
22.1 |
0.577 |
5.68 |
0.684 |
6.06 |
3.32 |
22.3 |
0.581 |
5.72 |
0.686 |
6.08 |
3.35 |
22.5 |
0.582 |
5.75 |
0.687 |
6.09
|
Electrical Characteristics of Typical Cell at Standard Test Conditions (STC)
STC: 1000W/m², AM 1.5g and cell temp 25°C
