Shenzhen Endless Power CO., LTD

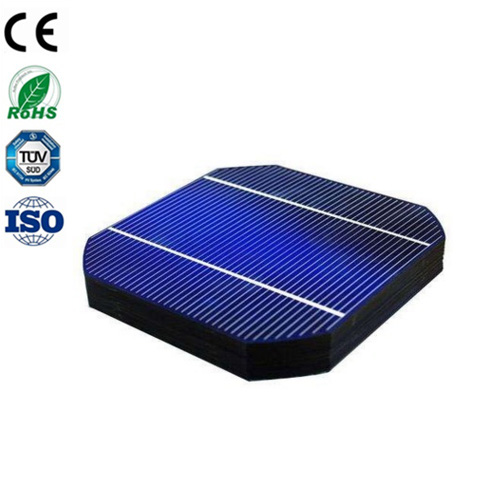

Product name : 125 Mono solar cell 17.8% - 19.1%
Product No. : 2016210183047
←[Previous Product]
Online Inquiry         Email Us

  Details:

Features:

1.High conversion efficiencies resulting in superior power output performance

2.Outstanding power output even in low light or high temperature conditions

3.Optimized design for ease of soldering and lamination

4.Long-term stability,reliability and performance

5.Low breakage rate

6.Color uniformaity



Production and Quality Control:

1.Precision cell efficiency sorting procedures

2.Stringent criteria for color uniformity and appearance

3.Reverse current and shunt resistance screening

4. ISO9001,ISO14001 and OHSAS 18001 etc. Certificated

Item

125mm  Mono solar cells

Dimentions

125mm × 125mm ± 0.5mm

Diameter

φ165mm ± 0.5mm

Thickness

160um ± 20um

Front

1.5 mm bus bar and 72 fingers (silver)

Silicon Nitride antireflection coating

Back

2.5 mm segmented soldering silver pads

Back surface field (aluminum)

Temperature  Coefficients

TKVoltage:-0.32 % °C;TKCurrent:+0.02 % °C;TKPower:-0.45 % °C



Pmpp

Efficiency

Imp

Voc

Isc

3.000W

19.4%

5.38A

0.642V

5.84A

2.975W

19.2%

5.34A

0.642V

5.79A

2.950W

19.1%

5.3A

0.641V

5.75A

2.925W

18.9%

5.25A

0.641V

5.7A

2.900W

18.7%

5.21A

0.641V

5.66A

2.875W

18.6%

5.17A

0.64V

5.62A

2.850W

18.4%

5.13A

0.64V

5.57A

2.825W

18.2%

5.09A

0.639V

5.53A

2.800W

18.1%

5.05A

0.638V

5.49A

2.775W

17.9%

5.01A

0.638V

5.44A



Testing conditions : 1000W/m2 , AM 1.5 , 25℃ , Tolerance : Efficiency ± 0.2% abs.,Pmpp ± 1.5%rel.
