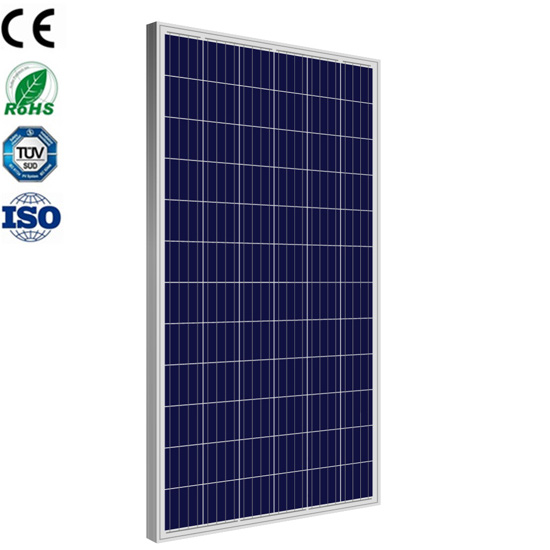

310W POLY SOLAR PANELS / SOLAR MODULES
- 25 Years linear performance warranty.
- 12 years warranty on power output not fall below 90%
- 10 Years warranty on material and workmanship
- 24 hour-response service
- Enhanced design for easy installation and long-term reliability
|
Electrical Parameters at Standard Test Conditions(STC)
|
|
Module type
|
EP-P290W
|
EP-P295W
|
EP-P300W
|
EP-P305W
|
EP-P310W
|
|
Rated Maximum Power (Pmax/W)
|
290
|
295
|
300
|
305
|
310
|
|
Maximum Power Voltage (Vmp/V)
|
36.10
|
36.25
|
36.41
|
36.71
|
37.00
|
|
Open-circuit Voltage (Voc/V)
|
44.86
|
45.00
|
45.20
|
45.35
|
45.45
|
|
Maximum Power Current (Imp/A)
|
8.04
|
8.14
|
8.24
|
8.31
|
8.38
|
|
Short-circuit Current (Isc/A)
|
8.53
|
8.65
|
8.73
|
8.79
|
8.85
|
|
Module Efficiency (%)
|
14.9
|
15.2
|
15.5
|
15.70
|
16.00
|
|
STC: Irradiance 1000W/M2 Module Temperature: 25℃ AM=1.5
|
|
Mechanical Characteristics
|
|
Cell Size (mm)
|
156X156
|
|
No. of cells
|
72(6X12)
|
|
Module Size (mm)
|
1956X992X50
|
|
ModuleWeight (KG)
|
23
|
|
Front Glass
|
3.2mm, Low Iron, Tempered Glass
|
|
Frame
|
Anodized Aluminum Alloy Type 6063-T5
|
|
Junction Box
|
IP 65 Rated (Black)
|
|
Output Cables
|
TUV 1×4mm2, length:900mm
|
|
Connector
|
MC4 (IP67)
|
|
Encapsulation Material
|
EVA(0.45±0.03mm thickness)
|
|
Back Foil
|
White TPT(0.32±0.03mm thickness)
|
|
Fixing Adhesive
|
Silicone Sealant(White)
|
|
Power Tolerance
|
0~+3%
|
|
Temperature Coefficient of Pmax
|
(-0.43±0.05)%/℃
|
|
Temperature Coefficient of Voc
|
(-0.33±0.02)%/℃
|
|
Temperature Coefficient of Isc
|
(0.058±0.01) %/℃
|
|
NOTC(℃)
|
(47±2)℃
|
|
Max. system voltage
|
1000DVC (IEC)
|
|
Max. system fuse rating (A)
|
15
|
|
Operating temperature (℃)
|
-40~85
|
|
Max. static load, front (e.g., snow) pa
|
5400
|
|
Max. static load, back (e.g., wind) pa
|
2400
|
|
